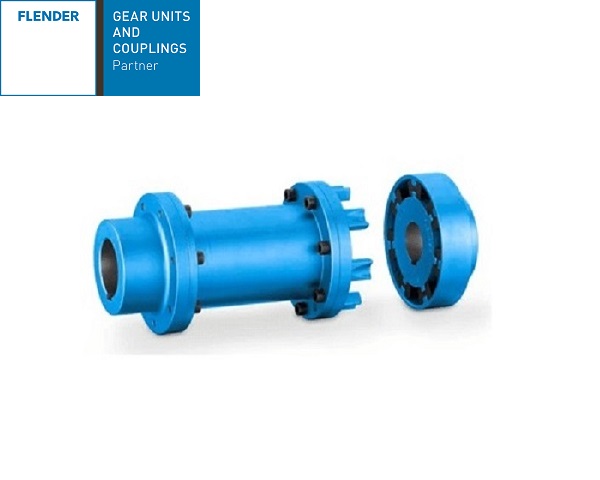

N-eupex series Type H coupling

  • Universally usable damping shaft coupling for compensating for shaft misalignment
  • Nominal torque range TKN = 60 Nm to 21,200 Nm in 19 sizes
  • Temperature range: -50 °C to +100 °C

The prices shown are for couplings without holes.
Custom hole sizes are available upon request. Request a quote!

SKU: 2135454-1-1 Category: Brand:
Size Rated Torque 80 ShoreA Tkn (NM) Speed nKmax (rpm) D2 MIN * D2 MAX * DA ND2 NL2 S ΔS + / – S2 LG DFA h8 DFN H7 DFK FB ZF DFB Flange thread J1 (kgm²) J2 (kgm²) Weight m (kg)
80 85 7200 – 42 80 68 30 24 1.0 3 54 106 42 94 8 6 6.6 M6 0.0008 0.0006 1.2
95 140 6600 – 48 95 76 35 27 1.0 3 62 120 52 108 8 6 6.6 M6 0.0013 0.0012 1.7
110 225 6300 – 55 110 86 40 30 1.0 3 70 144 62 128 10 6 9 M8 0.0033 0.0024 2.6
125 345 6000 – 60 125 100 50 34 1.0 3 84 158 75 142 10 6 9 M8 0.005 0.005 4.0
140 500 5300 – 65 140 100 55 37 1.0 3 92 180 82 160 13 6 11 M10 0.0010 0.007 5.5
160 840 4800 – 70 160 108 60 43 2.0 4 103 200 95 180 13 7 11 M10 0.0160 0.01 7.1
180 1250 4300 – 80 180 125 70 46 2.0 4 116 220 110 200 13 8 11 M10 0.025 0.02 10
200 1950 3900 – 85 200 140 80 51 2.0 4 131 248 120 224 16 8 11 M10 0.049 0.04 15
225 2300 3600 – 90 225 150 90 56 2.0 4 146 274 135 250 16 8 14 M12 0.076 0.06 19
250 3900 3000 46 100 250 165 100 65.5 2.5 5.5 165.5 314 150 282 20 8 18 M16 0.15 0.11 26
280 5500 3000 54 110 180 180 110 70.5 2.5 5.5 180.5 344 170 312 20 8 18 M16 0.23 0.18 34

 * Dimensions in mm Mass moment of inertia Article no. 1) Weight Bore with keyway to DIN 6885-1

Size

80 (LZ87), 80 (LZ127), 95 (LZ87), 95 (LZ127), 110 (LZ85), 110 (LZ125), 110 (LZ165), 125 (LZ85), 125 (LZ125), 125 (LZ165), 125 (LZ185), 125 (LZ235), 140 (LZ82), 140 (LZ122), 140 LZ162, 140 LZ182, 140 (LZ232), 160 (LZ81,5), 160 (LZ121,5), 160 (LZ161,5), 160 (LZ181,5), 160 (LZ231,5), 180 (LZ121,5), 180 (LZ161,5), 180 (LZ181,5), 180 (LZ231,5), 200 (LZ118,5), 200 (LZ158,5), 200 (LZ178,5), 200 (LZ228,5), 225 (LZ118,5), 225 (LZ158,5), 225 (LZ178,5), 225 (LZ228,5), 250 (LZ152,5), 250 (LZ172,5), 250 (LZ222,5), 280, 315, 355, 400, 440
